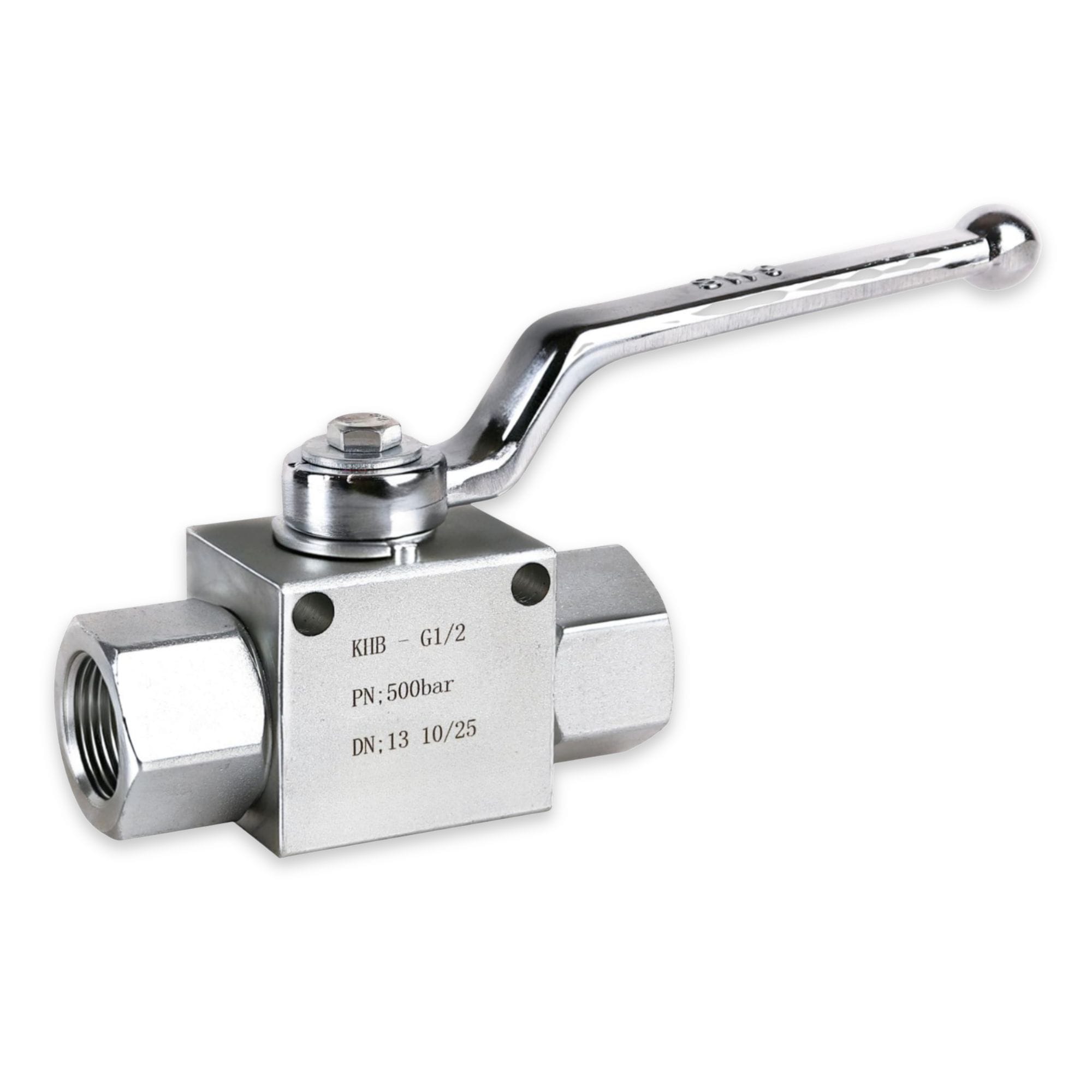

High Pressure Ball Valve
The KHB (BKH) series high-pressure block ball valves are engineered to deliver reliable, zero-leakage shut-off control in demanding hydraulic circuits. Featuring a robust carbon steel body with premium zinc plating, these valves ensure exceptional corrosion resistance and durability. Capable of handling extreme pressures up to 500 Bar and operating temperatures down to -30°C, they are the ideal choice for heavy-duty agricultural machinery and mobile equipment operating in harsh environments.
Description:
Built for maximum safety and flow efficiency, the KHB (BKH) hydraulic block ball valves feature a blowout-proof spindle and a precision-machined steel ball. This design minimizes pressure drop while providing a smooth, positive quarter-turn shut-off. With flexible sealing options available, these valves maintain consistent, leak-free performance across a wide range of temperatures, making them perfectly suited for the intense vibrations and high-pressure conditions of modern agricultural fluid power systems.
- Model Series: KHB (BKH) Block Type 2-Way Ball Valve
- Max Working Pressure: Up to 500 Bar (315 Bar for 1″ and 1-1/4″ sizes)
- Available Port Sizes: G 1/4″, G 3/8″, G 1/2″, G 3/4″, G 1″, G 1-1/4″
- Working Temperature: -25°C to +100°C (Standard NBR seals) / -30°C to +170°C (FPM seals available upon request)
- Material Construction: Carbon Steel body and ball
- Surface Treatment: Premium Zinc-plated for enhanced rust protection
- Core Components: Blowout-proof spindle and high-strength POM valve seats
Designed for reliable hydraulic control
Reliable load holding
Helps maintain load stability and prevents unintended actuator movement.
Precise pressure and flow control
Provides stable pressure regulation and accurate flow control for hydraulic systems.
Low-leakage performance
Helps reduce internal leakage and supports long service life.
Flexible port and mounting options
Suitable for agricultural, construction and industrial hydraulic systems.
Applications
Harvesting equipment
Tractors & attachments
Precision Farming Solutions
