Double Pilot Check Valve

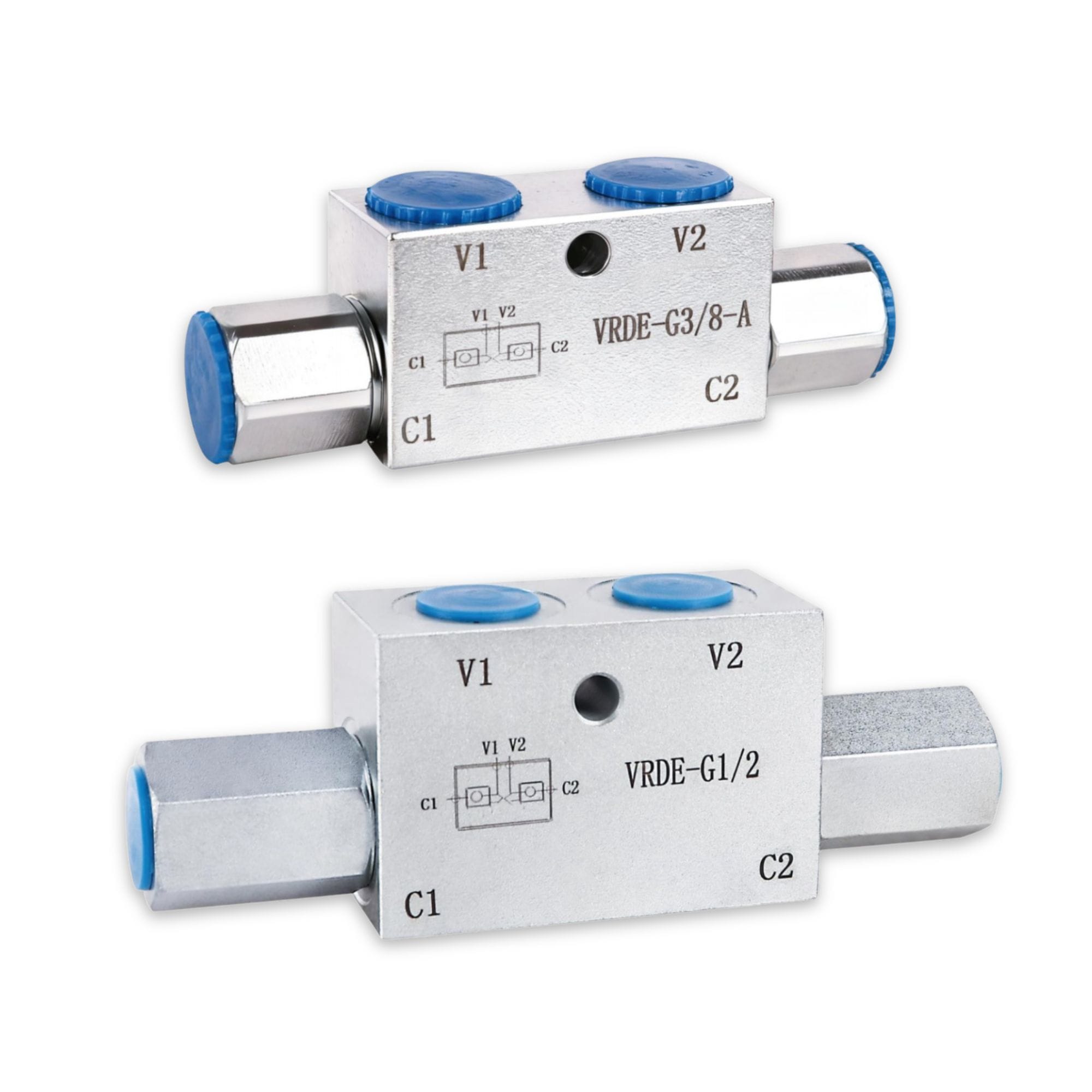

The Double Pilot Check Valves (VRDE/VRDL/VRPE Series) are engineered to securely lock hydraulic cylinders in both directions, preventing any unintended load drift. Featuring hard steel internal valves and zero-leakage NBR seals, these valves deliver ultimate holding safety and exceptional durability for agricultural and heavy-duty industrial hydraulic systems.
Description:
When it comes to mobile equipment and agricultural machinery operating in demanding environments, load stability is critical. Our double pilot check valves ensure zero-drift performance for hydraulic actuators, securely holding the load in position until pilot pressure is applied.
Constructed with a rugged steel body and highly reliable sealing materials, they offer outstanding resilience against continuous high pressure (up to 350 Bar) and extreme environmental temperatures. With versatile mounting options including inline, plate, and flanged types, this series can seamlessly integrate into diverse hydraulic setups.
- Max Working Pressure: 350 Bar (35 MPa)
- Max Flow Capacity: 20 L/min up to 120 L/min (Depending on series and port sizes)
- Available Pilot Ratios: 1:4, 1:4.5, 1:5, 1:7.1 (Model specific)
- Material Construction: Steel (Body), Hardened Steel (Internal Valves), NBR (Seals)
- Port Sizes (GAS): G 1/4″, G 3/8″, G 1/2″, G 3/4″, G 1″
- Environment Temps: -20°C to +60°C (Max operating fluid temp: up to +90°C)
Designed for reliable hydraulic control
Reliable load holding
Helps maintain load stability and prevents unintended actuator movement.
Precise pressure and flow control
Provides stable pressure regulation and accurate flow control for hydraulic systems.
Low-leakage performance
Helps reduce internal leakage and supports long service life.
Flexible port and mounting options
Suitable for agricultural, construction and industrial hydraulic systems.
Applications
Harvesting equipment
Tractors & attachments
Precision Farming Solutions
