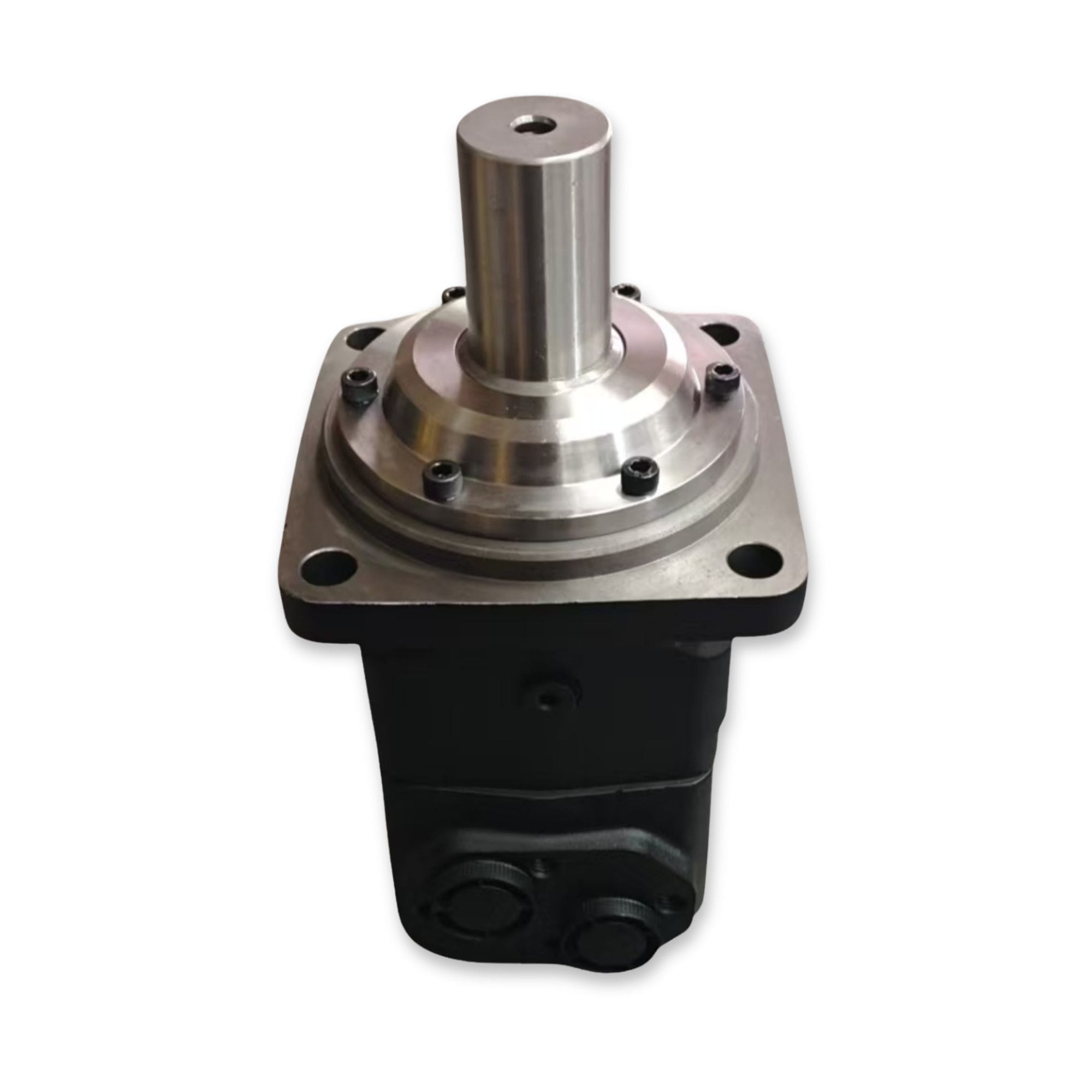

BMV Series Hydraulic Motor
Products: Orbital Hydraulic Motors
The BMV series of cycloidal hydraulic motors are advanced hydraulic motors featuring a face-port distribution design. This series utilizes a column-type rotor-stator assembly and is characterized by high operating pressure, high efficiency, excellent overall efficiency retention, and a long service life. Based on the standard design, multifunctional variants can be customized to meet specific user requirements.
Description:
BMV orbital hydraulic motors are designed for heavy-duty mobile machinery and industrial hydraulic systems requiring high torque, high flow and reliable load capacity. With nominal displacements from 315 to 1,000 cm³/rev., continuous working pressure differences up to 20 MPa and continuous torque up to 2,050 N·m, the series provides a powerful drive solution for demanding hydraulic applications.
Key Specifications
• Nominal displacement range: 315–1,000 cm³/rev.
• Actual displacement range: 337–1,012.3 cm³/rev.
• Max. continuous working pressure difference: up to 20 MPa.
• Max. continuous torque: up to 2,050 N·m.
• Max. continuous flow: up to 200 L/min.
• Max. inlet pressure: 21 MPa continuous / 25 MPa intermittent / 30 MPa peak.
• Multiple flange, shaft, port and rotation options available.
BMV Series Technical Data
Compare model-specific displacement, speed, torque, working pressure difference and flow ratings for preliminary selection.
BMV-315
• Actual Displacement: 337 cm³/rev.
• Max. Speed: 465 / 585 rpm
• Max. Torque: 930 / 1,110 N·m
• Max. Working Pressure Difference: 20 / 24 MPa
• Max. Flow: 160 / 200 L/min
Continuous / Intermittent values.
BMV-400
• Actual Displacement: 426.7 cm³/rev.
• Max. Speed: 460 / 560 rpm
• Max. Torque: 1,200 / 1,430 N·m
• Max. Working Pressure Difference: 20 / 24 MPa
• Max. Flow: 200 / 240 L/min
Continuous / Intermittent values.
BMV-500
• Actual Displacement: 535.8 cm³/rev.
• Max. Speed: 365 / 443 rpm
• Max. Torque: 1,500 / 1,800 N·m
• Max. Working Pressure Difference: 20 / 24 MPa
• Max. Flow: 200 / 240 L/min
Continuous / Intermittent values.
BMV-630
• Actual Displacement: 672.1 cm³/rev.
• Max. Speed: 290 / 353 rpm
• Max. Torque: 1,680 / 1,950 N·m
• Max. Working Pressure Difference: 18 / 21 MPa
• Max. Flow: 200 / 240 L/min
Continuous / Intermittent values.
BMV-800
• Actual Displacement: 853.1 cm³/rev.
• Max. Speed: 230 / 278 rpm
• Max. Torque: 2,000 / 2,235 N·m
• Max. Working Pressure Difference: 16 / 18 MPa
• Max. Flow: 200 / 240 L/min
Continuous / Intermittent values.
BMV-1000
• Actual Displacement: 1,012.3 cm³/rev.
• Max. Speed: 193 / 235 rpm
• Max. Torque: 2,050 / 2,320 N·m
• Max. Working Pressure Difference: 14 / 16 MPa
• Max. Flow: 200 / 240 L/min
Continuous / Intermittent values.
Max. Inlet Pressure
21 MPa rated / 21 MPa continuous / 25 MPa intermittent / 30 MPa peak.
Operating Definitions
Continuous values refer to the maximum values at which the motor can operate continuously.
Intermittent values refer to the maximum values at which the motor operates for up to 6 seconds within one minute.
Peak values refer to the maximum values at which the motor operates for up to 0.6 seconds within one minute.
Values shown are for preliminary model selection. Refer to the PDF datasheet for rated and peak values, detailed performance data, shaft seal pressure, axial and radial load information, mounting dimensions and ordering information.
Available Configurations
Multiple mounting, shaft, port, rotation and finish options are available for different equipment and hydraulic system requirements.
Structures & Mounting
• Standard BMV configuration
• 4-bolt square flange options
• Pilot Ø160 and Ø180 options
• Multiple mounting dimensions
Shaft Options
• Straight keyed shafts
• Involute spline shaft options
• Tapered shaft options
• Metric and imperial shaft sizes
• Multiple shaft lengths
Port Options
• G thread options
• Metric thread options
• UN O-ring ports
• Subplate mounting options
• Multiple drain-port configurations
Rotation & Special Options
• Standard rotation
• Reverse rotation
• Unpainted, blue, black or silver-gray finish
• Standard and customized configurations
Available configurations vary by displacement and installation type. Please provide the existing model, nameplate, mounting flange, shaft dimensions, port threads, drain-port requirements and application information for final confirmation.
Designed for High-Torque, Heavy-Duty Applications
Very High Torque Output
Provides strong low-speed output for high-load hydraulic drive requirements.
Large Displacement Drive
The 315-1000 cm³/rev range supports large drive systems needing high torque.
Heavy-duty Hydraulic Systems
Built for demanding hydraulic systems where durability and sealing matter.
Large Machinery Applications
Suitable for large mobile machinery, industrial equipment and heavy-duty drive circuits.
Applications
Harvesting equipment
Tractors & attachments
Precision Farming Solutions
