Introduction
BM series orbital hydraulic motors are widely used in mobile machinery, agricultural equipment, construction machinery, material handling equipment and many other hydraulic drive systems.
For buyers, maintenance teams and spare parts distributors, choosing the right orbital hydraulic motor is not only about finding a similar-looking product. Different BM series motors may have different displacement options, shaft types, mounting flanges, oil ports, pressure ratings and working conditions.

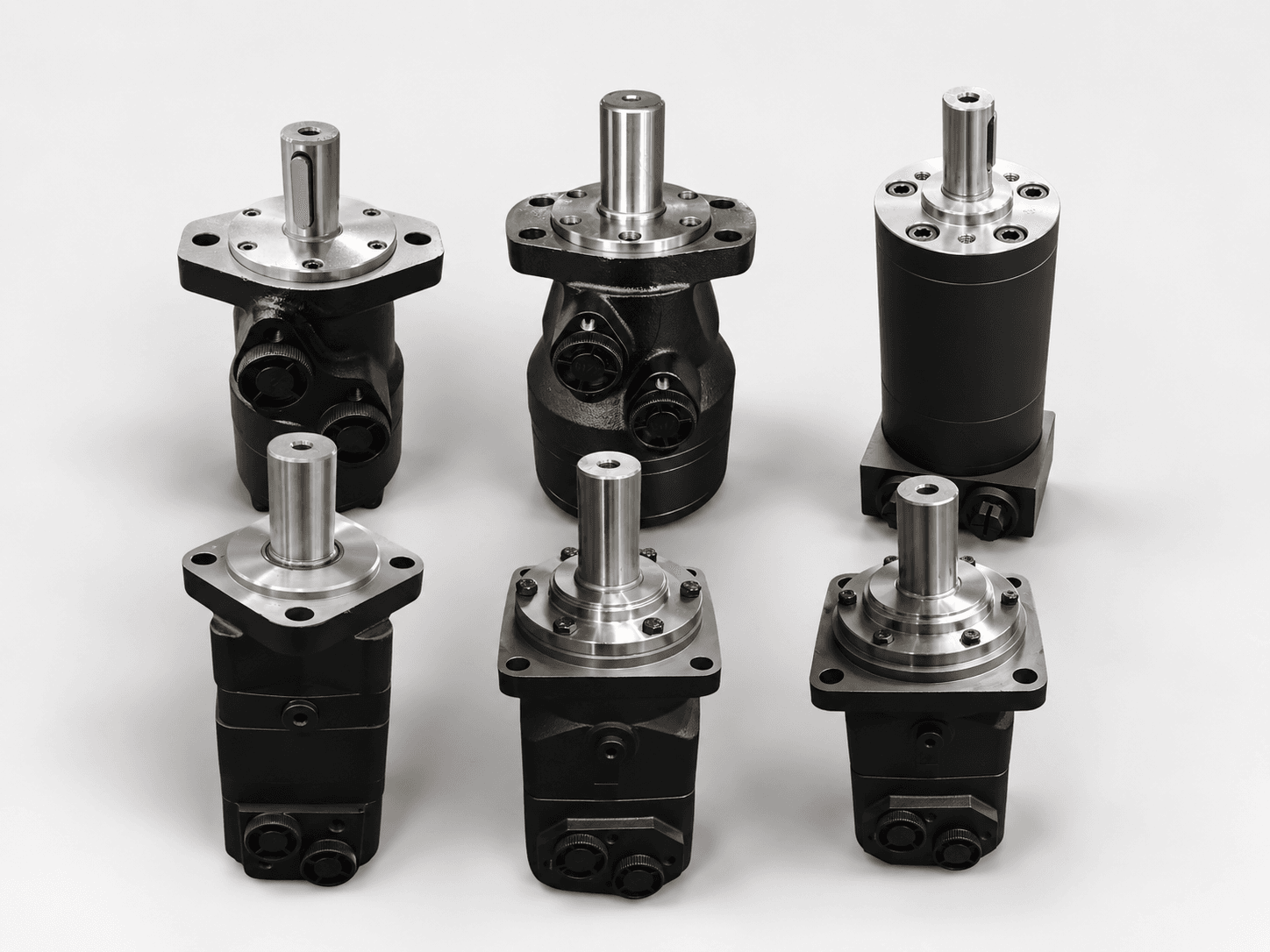

YUNLINK HYDRAULICS supplies BM series orbital hydraulic motors, including BM2, BMH, BMM, BMSY, BMT and BMV series. This guide explains the main selection points for BM series hydraulic motors, especially for mobile machinery and replacement applications.
What Is an Orbital Hydraulic Motor?
An orbital hydraulic motor is a low-speed, high-torque hydraulic motor. It converts hydraulic oil pressure and flow into rotary motion.
In many mobile hydraulic systems, orbital motors are selected because they offer compact structure, stable torque output and flexible installation options. They are commonly used where the machine needs reliable rotation at relatively low speed.
Common applications include:
- Agricultural machinery
- Construction equipment
- Sweepers
- Conveyors
- Material handling equipment
- Road machinery
- Hydraulic drive wheels
- Winches and auxiliary drive systems
- Replacement parts for mobile machines
The correct motor should be selected according to the application, torque demand, speed requirement, installation dimensions and hydraulic system conditions.
Spool Valve and Disc Valve Motor Design
BM series orbital motors can generally be understood through two common design types: spool valve motors and disc valve motors.
Spool Valve Motors
Spool valve motors are usually compact and widely used in light-duty and medium-duty hydraulic systems. They are often selected when the machine requires simple structure, stable operation and economical replacement.
Common related series include:
- BMM series
- BM2 series
- BMH series
These motors are often suitable for smaller machines, auxiliary drive systems and general mobile hydraulic applications.
Disc Valve Motors
Disc valve motors are commonly used for medium-duty and heavy-duty applications. They are often selected when the machine requires stronger torque output, stable low-speed performance and reliable operation under heavier working conditions.
Common related series include:
- BMSY series
- BMT series
- BMV series
These motors are often used in agricultural machinery, construction machinery, heavy mobile equipment and demanding hydraulic drive systems.
BM Series Overview
BMM Series Hydraulic Motor
BMM series hydraulic motors are compact orbital motors. They are suitable for applications where installation space is limited and the hydraulic system does not require very high torque.
Typical applications include small machines, light agricultural equipment, sweepers and auxiliary drive systems.
BM2 Series Hydraulic Motor
BM2 series hydraulic motors are commonly used standard orbital motors. They are suitable for general mobile hydraulic systems and many replacement applications.
BM2 motors are often selected for agricultural machinery, small construction equipment, conveyors and other hydraulic drive systems where balanced performance and compact size are required.
BMH Series Hydraulic Motor
BMH series hydraulic motors are suitable for medium-duty mobile hydraulic systems. They are often used where stable torque output and reliable operation are required.
For replacement use, buyers should carefully check the old motor model number, shaft type, flange size and port connection before selecting a BMH motor.
BMSY Series Hydraulic Motor
BMSY series hydraulic motors are commonly used in medium-duty and heavier hydraulic applications. They are suitable for systems that require stable performance and efficient hydraulic drive.
Typical applications may include agricultural machinery, mobile equipment and hydraulic drive systems where working conditions are more demanding than light-duty applications.
BMT Series Hydraulic Motor
BMT series hydraulic motors are often selected for heavier mobile machinery and equipment requiring higher torque output.
They are commonly used in construction machinery, agricultural equipment, winches and other hydraulic drive systems where stronger performance is required.
BMV Series Hydraulic Motor
BMV series hydraulic motors are suitable for high-torque hydraulic drive applications and demanding working conditions.
They are often used in heavy mobile machinery, large agricultural equipment, drilling equipment and other systems where strong output and reliable operation are important.
Key Factors When Selecting BM Series Motors
- Application
The first step is to understand where the motor will be used.
A motor used on a small sweeper is different from a motor used on agricultural machinery, construction equipment or heavy mobile machinery. The machine type, working load, duty cycle and installation environment all affect the motor selection.
Before ordering, it is helpful to confirm:
- Machine type
- Function of the motor
- Working load
- Continuous or intermittent operation
- Replacement use or new project
- Working environment
- Displacement
Displacement is one of the most important factors when selecting an orbital hydraulic motor.
Under the same oil flow, a motor with larger displacement usually provides lower speed and higher torque. A motor with smaller displacement usually provides higher speed and lower torque.
For replacement orders, the displacement should match the original motor or the actual hydraulic system requirement. If the displacement is not correct, the machine speed or torque may not meet the expected performance.
- Shaft Type
The shaft must match the machine connection.
Common shaft options may include straight shaft, splined shaft, tapered shaft or other special shaft types. Even if the motor series is correct, the motor may not fit if the shaft is different.
Important shaft details include:
- Shaft diameter
- Shaft length
- Keyway or spline details
- Connection type
- Photos of the shaft side
For replacement applications, a clear photo of the old motor shaft is very useful.
- Mounting Flange
The mounting flange must match the machine installation position.
Buyers should check the flange type, bolt hole distance, mounting hole size and pilot diameter. Motors that look similar may still have different mounting dimensions.
Before confirming an order, it is better to compare the mounting dimensions with the old motor or the machine drawing.
- Port Type and Thread
Oil port type and thread size must match the hydraulic hose or manifold connection.
Incorrect port type may cause installation problems or require extra adapters. For some machines, port position is also important because the installation space is limited.
Please check:
- Port position
- Thread type
- Port size
- Side port or rear port
- Drain port requirement, if applicable
- Pressure and Flow
Working pressure and oil flow affect the output of the hydraulic motor.
If the system pressure or flow does not match the motor, the machine may not get the required speed or torque. The motor should be selected according to the actual hydraulic system conditions.
If available, please provide:
- Working pressure
- Maximum pressure
- Flow rate
- Required speed
- Required torque
If these values are not available, the machine model and application details can also help with selection.
Replacement Applications
Many BM series orbital hydraulic motors are used for replacement and repair applications. In replacement orders, the safest method is to confirm the motor according to model number, nameplate, shaft, flange, port type, displacement and working conditions.
It is not recommended to choose a replacement motor only by appearance. Motors with similar outside shape may have different internal displacement, shaft dimensions, mounting holes or oil port threads.
For replacement inquiries, please provide:
- Existing motor model number
- Nameplate photo
- Front view photo
- Shaft side photo
- Port side photo
- Mounting side photo
- Main dimensions
- Machine type and application
If an OEM number or drawing is available, it can also help confirm the suitable replacement option.
What Information Should Buyers Provide?
To help confirm the correct BM series orbital hydraulic motor, please prepare the following information:
- Required motor series, if known
- Existing motor model number
- Photos of the old motor
- Shaft type and dimensions
- Mounting flange dimensions
- Port type and thread size
- Required displacement
- Working pressure and flow, if known
- Machine type and application
- Quantity required
- Destination country
- Special requirements, if any
A clear inquiry can reduce repeated confirmation and help the supplier provide a more accurate quotation.
Example Inquiry
A practical inquiry may look like this:
“We need an orbital hydraulic motor for agricultural machinery replacement. Please check the attached nameplate photo, shaft photo and port photo. The old motor is BM series type. Required quantity is 10 pcs. Destination country is Kazakhstan. Please quote price, lead time and shipping option.”
This kind of inquiry is much easier to process than only asking, “Please send price for hydraulic motor.”
Conclusion
BM series orbital hydraulic motors are widely used in mobile machinery, agricultural equipment, construction machinery and replacement applications. BM2, BMH, BMM, BMSY, BMT and BMV series motors can be selected according to application, displacement, shaft type, mounting flange, port connection, pressure, flow and working conditions.
For replacement orders, the best method is to provide the existing model number, photos, drawings or key dimensions. If you are not sure which BM series motor is suitable,send us your model number, drawing or application details.YUNLINK HYDRAULICS can help check suitable hydraulic motors for your machine or spare parts requirement.
